Swing Barrier Gate 1 Lan 2 Gate Berbasis Wajah

Akses Gerbang Otomatis – Solusi Cerdas untuk Pengelolaan Masuk Keluar Pengunjung. Tingkatkan keamanan dan efisiensi di area Anda, produk ini bisa di aplikasikan untuk tempat wisata, terminal, gym, kantor, playground, klub, dan berbagai area publik lainnya. Dengan teknologi QR Code, Face Recognition, QRIS, dilengkapi dengan Aplikasi untuk Transaksi dan Manajemen Pengunjung (Optional). Gerbang ini bukan hanya alat akses, tapi juga solusi manajemen pengunjung yang modern dan profesional.

Bundling Variant:

Only Software + Controller 1x + RFID 1x
Gate Only : EGS011 + Free RFID Card Reader IC/DC (4x) + Free RFID CARD (10x)
Gate, Software Access : EGS011 + Controller (2x) + Software Access + RFID Card Reader IC/ID (4x)
Gate, Face Raeder, Software Access : EGS011 + Face Recognition Terminal + Software Access
Gate, Ticketing Software, Software: EGS011 + Controller (2x) + QR Scanner (4x) + Software Ticketing
Gate, Ticketing Software,Payment : EGS011 + Controller (2x) + QR Scanner (4x) + Software Ticketing + QRIS Reader Payment (4x)
Fitur:

LED ALERTS : Indicate traffic direction with highly- visible green and red. The front post LED will keep green arrow shows that the lane is available. The LED on the side will change based on the status of the gates.
LANE STATUS LED : If the access is granted, the LED will be in green. In standby, the LED is blue. If denied access, the LED flash red.
ALARM FUNCTION : Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.
EMERGENCY EXIT : The function allows free passage in the event of an emergency or power outage, automatic reset when power is restored. outage, automatic reset when power is restored.
WORKING DIRECTION : Single directional or Bi-directional is optional.
AUTOMATIC RESET : The swing arms will lock automatically within 5s (adjustable) if a person delay to access.
ANTI-COLLISION : When the gates instantaneously encounter an impulse force that is beyond the safety range, the arm will automatic reset in place. The mechanism will not be damaged at all.
ANTI-PASS BACK : The gate will stay in lock if someone wants to entry in the reverse direction.
ANTI-TRAILING : The gate will alarm if more than one person passby without permission.
ANTI-INTRUSION : Thegate is locked automatically until a valid open signal is sent. When there is a valid signal, the gate will unlock within 0.2s (adjustable).

Spesification:

Swing Barrier Gate EGS01-L/M/R:
Dimension : 1400*180*980mm
Swing arm Material : Acrylic/ Tempered glass
Passage Width : 600mm (1.97ft) -900mm(2.95ft)
Mechanism : DC Brushless Motor
Pass rate : 30-35 persons/minute
Operating time : 0.2 seconds
Power Supply : 100V-240V 50/60Hz
Radar for automatic open : Unidirectional/Bi-directional
Open Signal : Passive Relay (Dry Contact)
Communication : RS485/RS232
MCBF : 3,000,000 Cycles
Working Temperature : -40℃ ~ 70℃
Working Environment : Indoor
Relative Humidity 95% Maximum

Additional Attachment Support:

Controller Access Gate:
CPU: Quad-Core ARM Cortex-A53 1.2GHz
RAM: 1GB LPDDR2
Storage: microSD (min. 16GB Class 10)
Network: LAN Ethernet 10/100 Mbps, WiFi 802.11 b/g/n
USB Port: 4 Slot
Audio Out : Buzzer Aktiv 5V , Jack 3.5mm
Output Kontrol :2x Relay 5V (with isolasi galvanis via optocoupler)
Tegangan input kontrol: 3.3V – 5V (dikendalikan GPIO)
Tegangan switching: 12v to 5vdc
Isolasi: optocoupler (PC817)
Proteksi spike: Dioda flyback (IN4007)
Tailscale / Zerotier: VPN over Mesh untuk remote SSH/VNC tanpa port forwarding
SSH Server: Diaktifkan untuk remote command-line
Fail2Ban + UFW: Proteksi keamanan akses jarak jauh
Script monitoring: untuk reboot otomatis saat hang / gagal koneksi internet
Power Supply: 5V 3A via Micro USB atau GPIO
Proteksi tambahan: Modul UPS HAT (opsional) atau proteksi tegangan balik
OS: Pi-Lite / server lite
Bahasa Pemrograman: Python3
Process Manager : PM2
Web Interface (Opsional): Flask + Bootstrap untuk kontrol melalui browser

Mounted QR Scanner:
reading range: 3-6cm
Color: Black
Type: access control system reader
interface: wiegand26/34, RS232, RS485, TCP/IP optional
Function: proxy 12.5 or Mifare card 13.5 , QR code reading
Operating system: Windows, Linux
Lights: Red, Green, Light Green
Material: Tempered glass

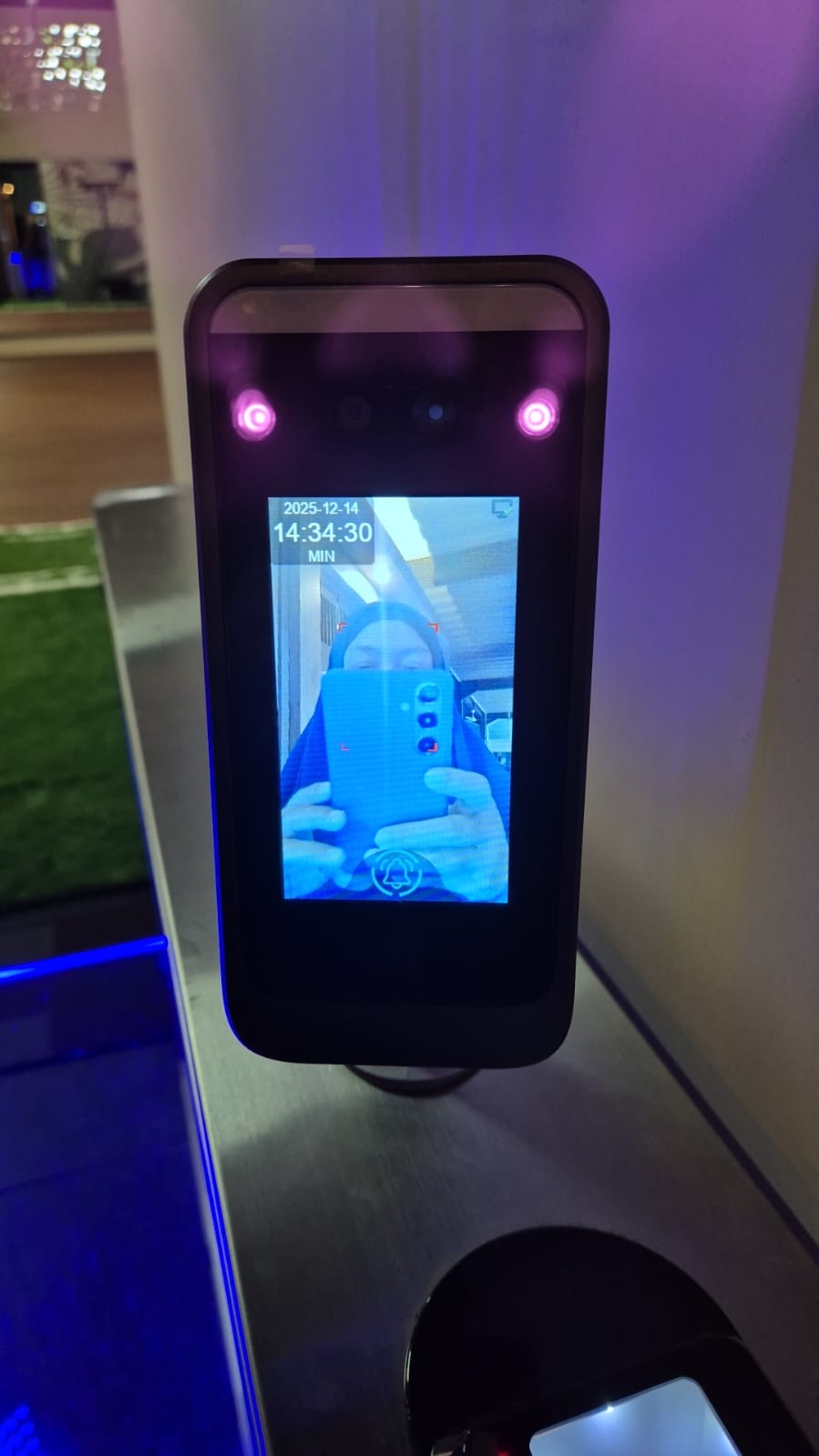

Recognition Terminal (QR code, Face, Finger Print, Card):
Power Supply : 12 VDC, 2 A (power adapter not included)
Power Consumption :≤ 10 W
Working Temperature : -10 °C to 50 °C (14 °F to 122 °F)
Working Humidity :0 to 90% (No condensing)
Dimensions : 118 mm × 118 mm × 20 mm (4.6'' × 4.6'' × 0.7'')
Installation : Surface, optional base stand 0.5 kg (1.1 lb)
Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
Function : QR code, Face Anti-Spoofing, Finger Print, RFID Card Reader

QRIS Payment Reader:
Sistem pembayaran yang terstandarisasi nasional, interoperabel antar berbagai aplikasi dan e-wallet, serta memiliki dua model utama: Merchant Presented Mode (MPM) di mana merchant menampilkan kode dan pelanggan memindai, dan Customer Presented Mode (CPM) di mana pelanggan menunjukkan kode kepada merchant untuk dipindai.

RFID Reader 125KHz Proximity Card:
Dimensi : 100x70x12mm
Scan Speed : 106kb/sec
Scan Distance : 5-8 Cm

Additional Software:

Transaction & Visitor App
Access & Visitor App
